Do you ever run into problems trying to Shell or Thicken your parts?

Are you tired of having to tweak your models and make endless adjustments in order to make the Shell / Thicken commands work?

When Shell fails,

Power Shell prevails!



Dogs

Shelling (and Thicken) failures are a common issue for virtually all CAD systems. Power Shell introduces new patent pending technology that finally addresses this important issue. Power Shell and Power Thicken use a new process for dealing with the complex Shelling and Offsetting failing cases typically encountered in CAD systems.

Power Shell & Power Thicken complement the SolidWorks Shell / Thicken tools. When Shell & Thicken fail, Power Shell & Power Thicken prevail. Power Shell and Power Thicken are intended to be used in the cases that fail the SolidWorks Shell / Thicken commands. When the SolidWorks Shell (or Thicken) command fails, you should use Power Shell to get the job done (instead of wasting time trying to modify your design so that the Shell command might work).

Bruce

Product Features

  • Shell, Hollow, Thicken
  • Work with solids (Power Shell) or surfaces (Power Thicken)
    Offset inside or outside
  • Handles complex surfaces, small radii, large radii, intersected surfaces, and virtually all difficult cases for standard shelling commands.
  • Handles clearance values
    Verification of offset distances (thickness)
    Rounding of corners and edges
  • Undo / Redo
    Preview
  • Integration with SOLIDWORKS® Feature Tree Editing
  • Power Shell and Power Thicken are included with Power Surfacing and Power Surfacing RE





ModelSW
vs. PS
0.1 Thickness 0.2  Thickness 0.5  Thickness 1  Thickness 2  Thickness 5  Thickness 10  Thickness

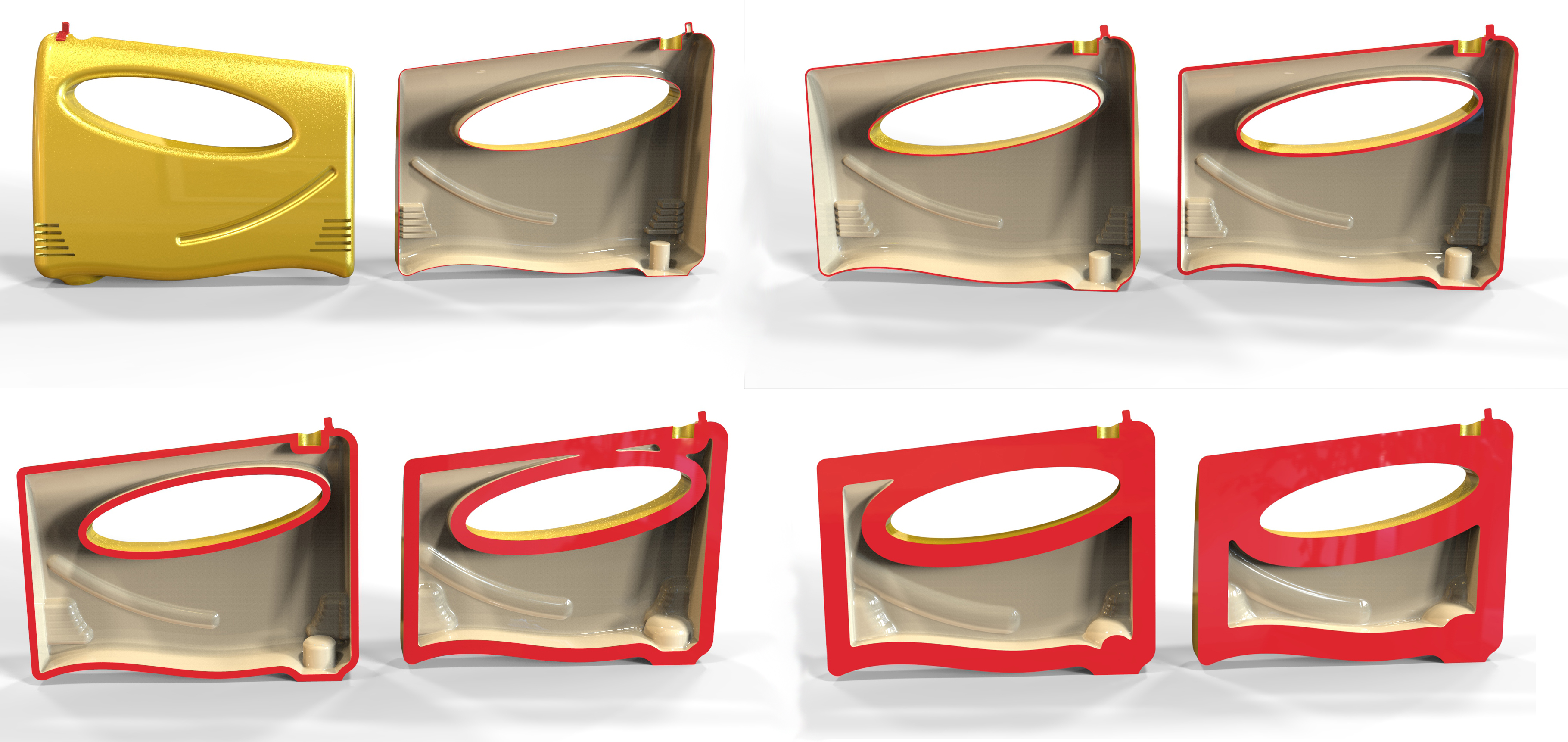

Mixer
SolidWorks Shell
Power Shell

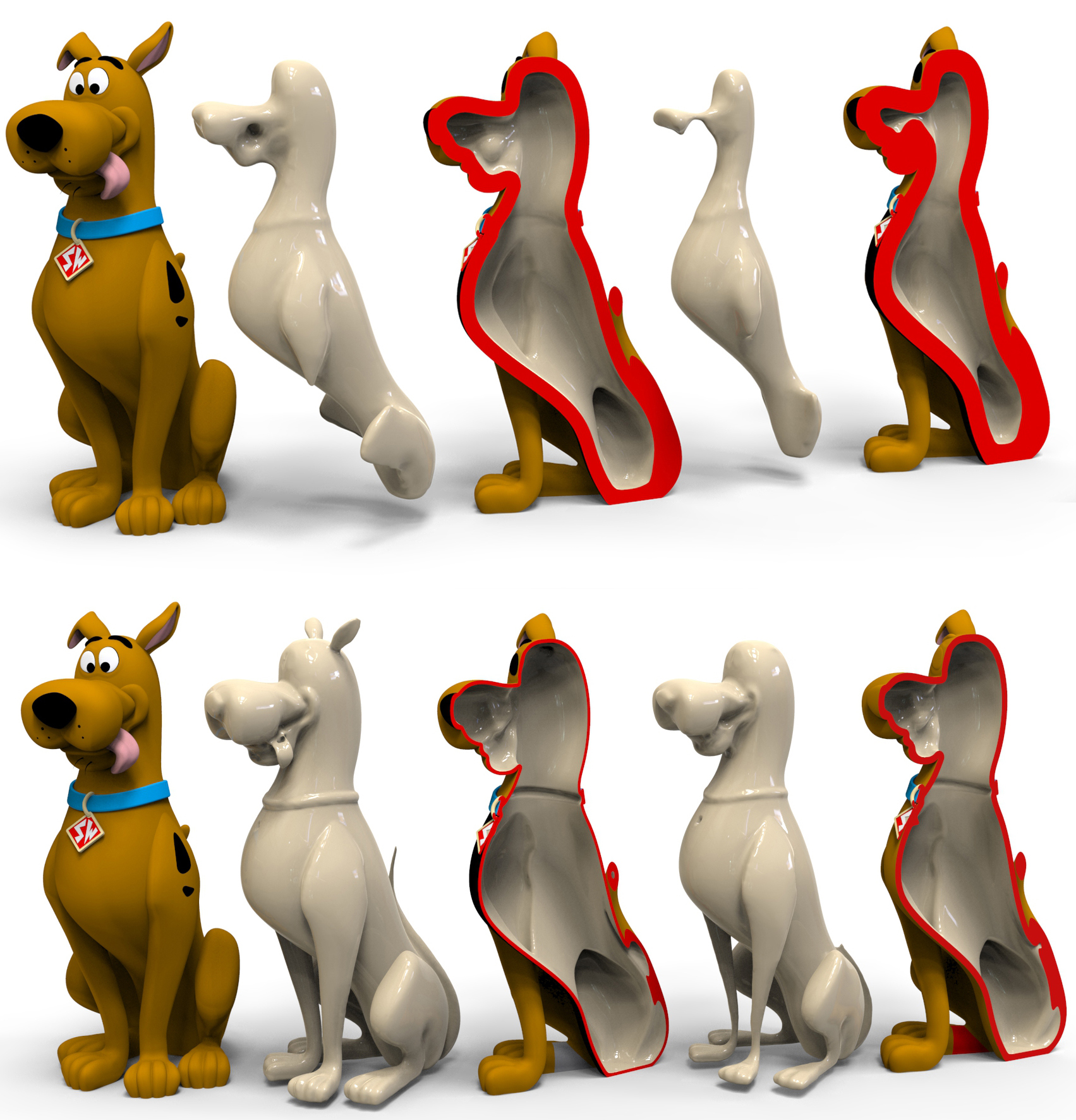

Dog
SolidWorks Shell
Power Shell

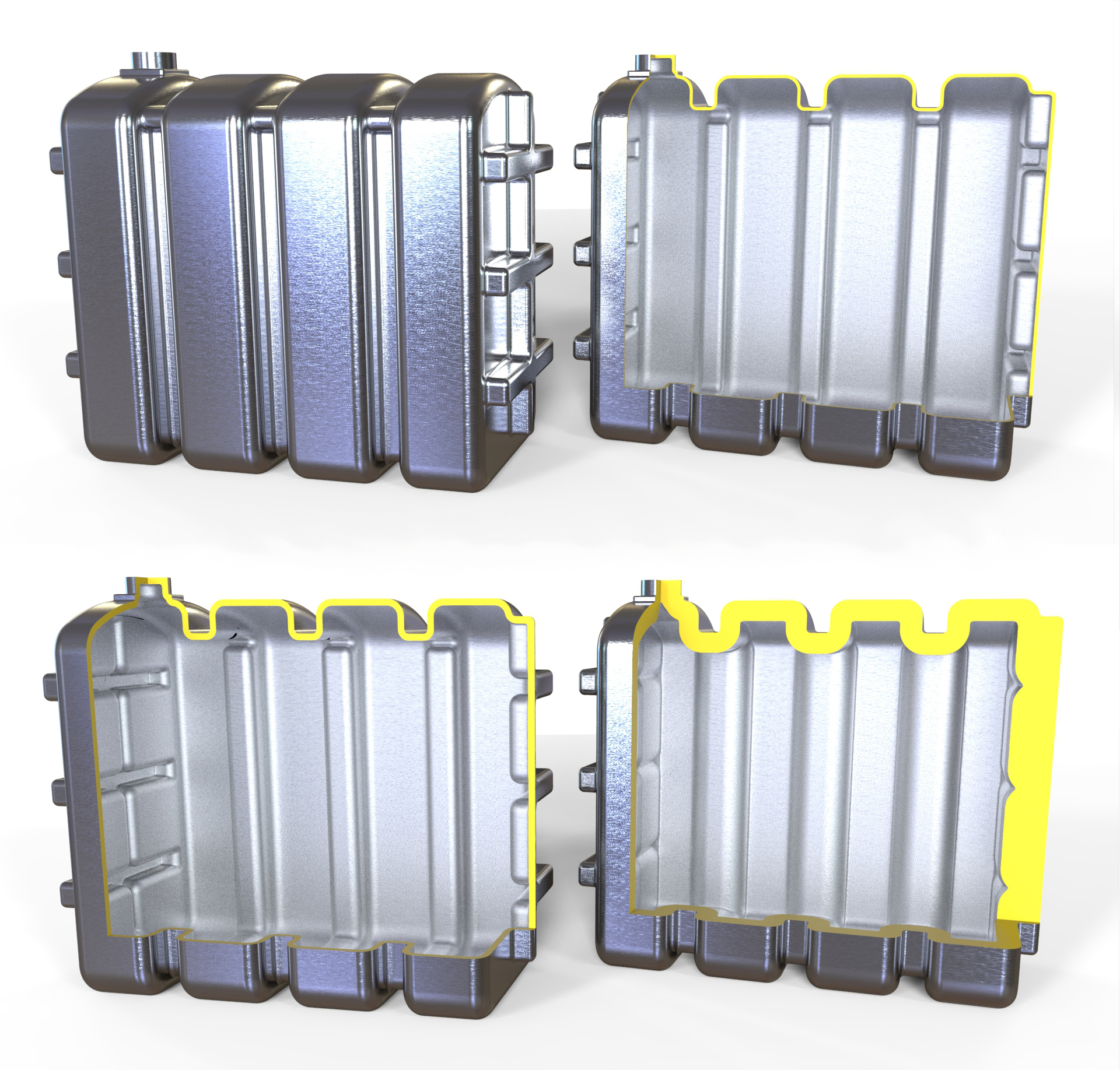

Gas Tank
SolidWorks Shell
Power Shell
Sports Drink
SolidWorks Shell
Power Shell
Saw Handle
SolidWorks Shell
Power Shell

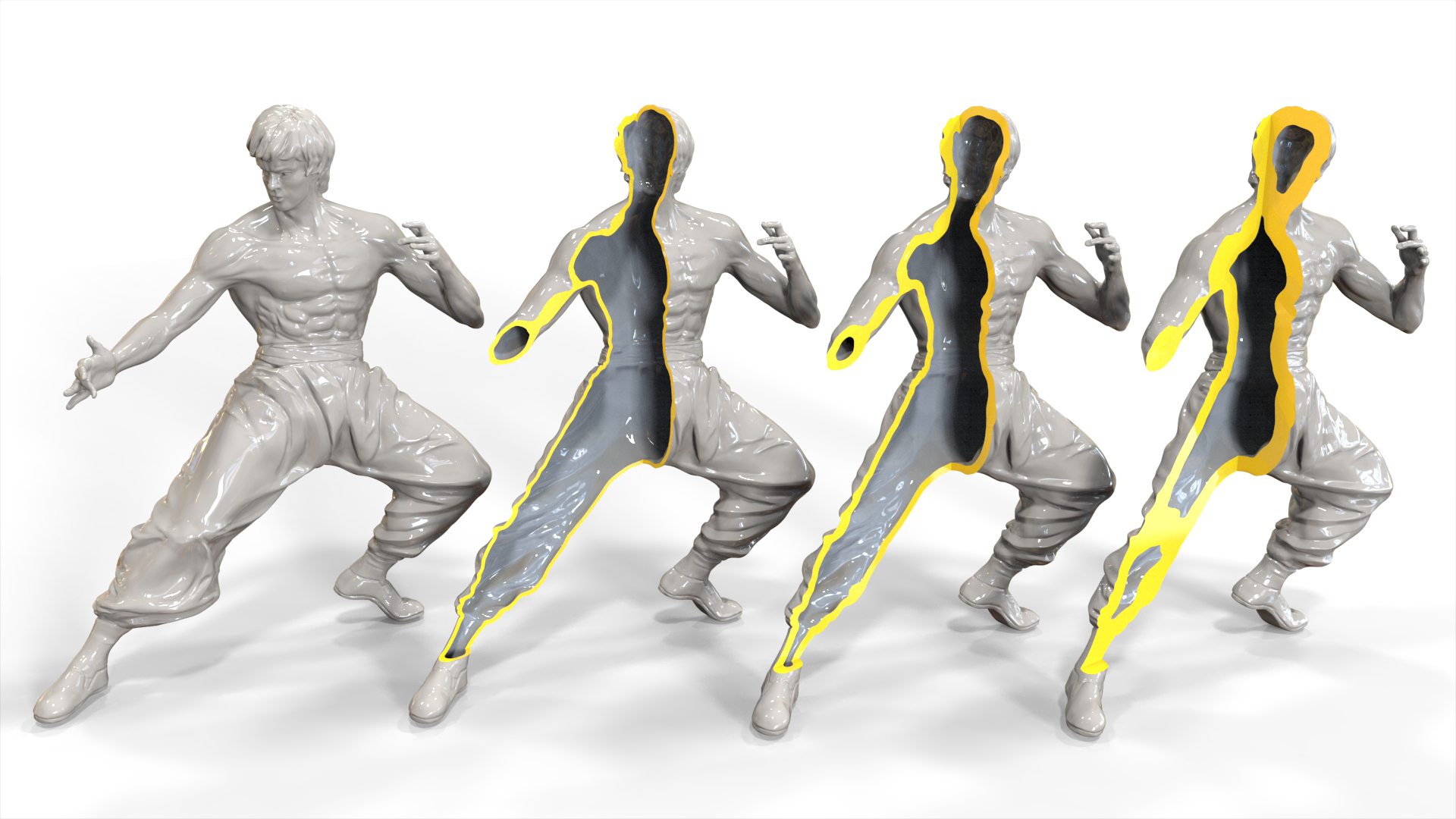

Bruce Lee
SolidWorks Shell
Power Shell
Soap Bottle
SolidWorks Shell
Power Shell

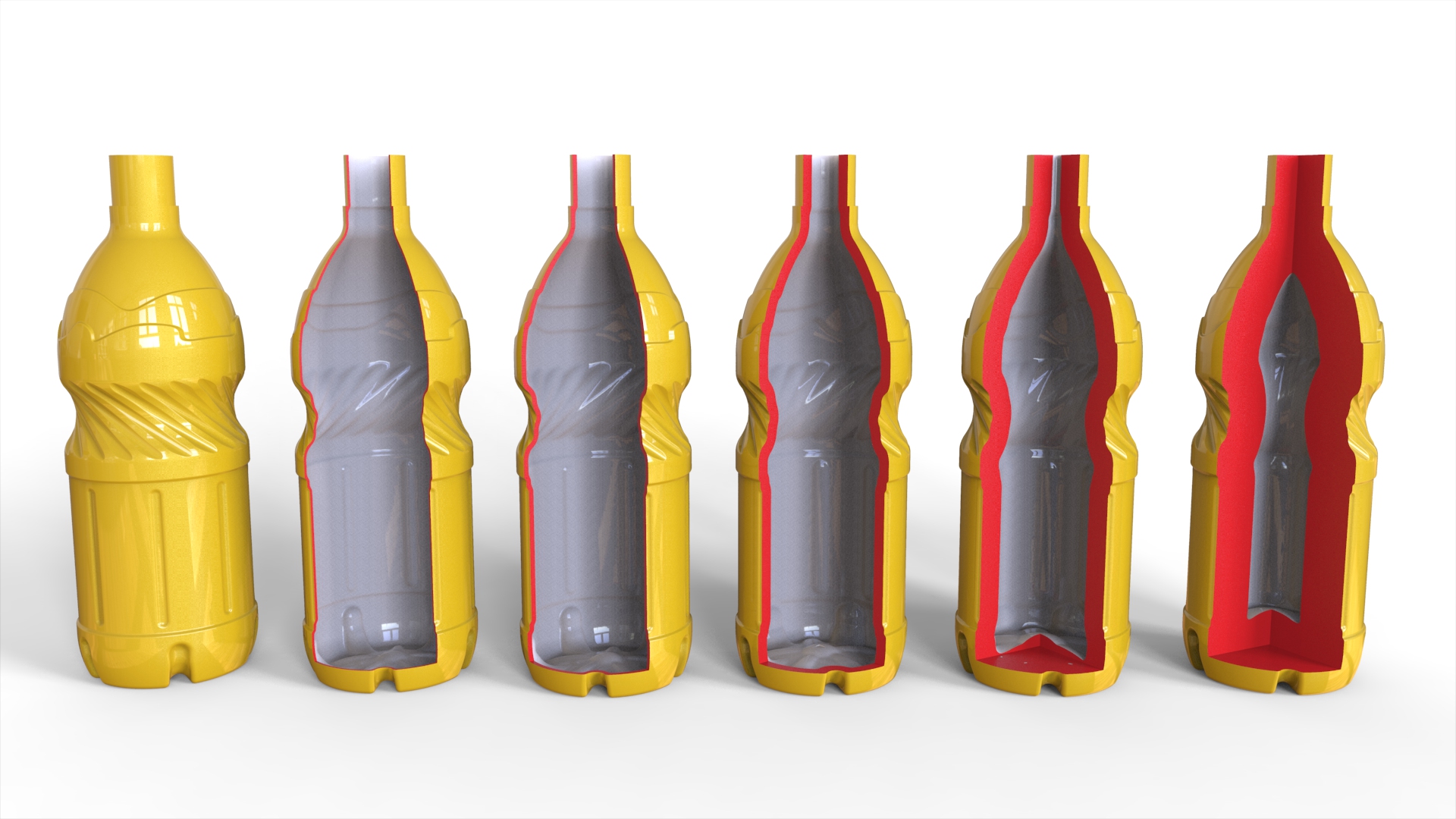

Tall Bottle
SolidWorks Shell
Power Shell
Bull Dog
SolidWorks Shell
Power Shell


1 / 9

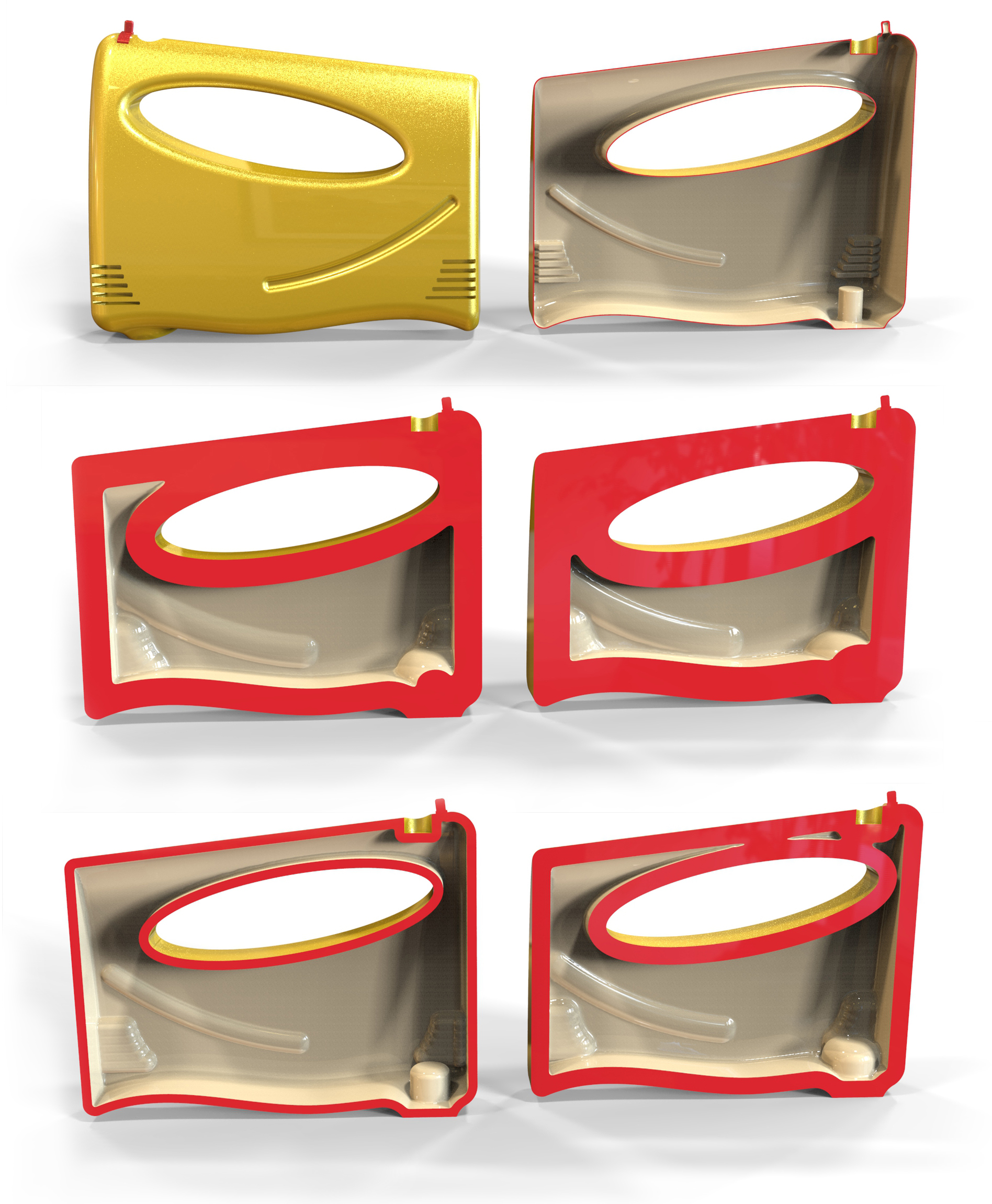

Mixer
2 / 9

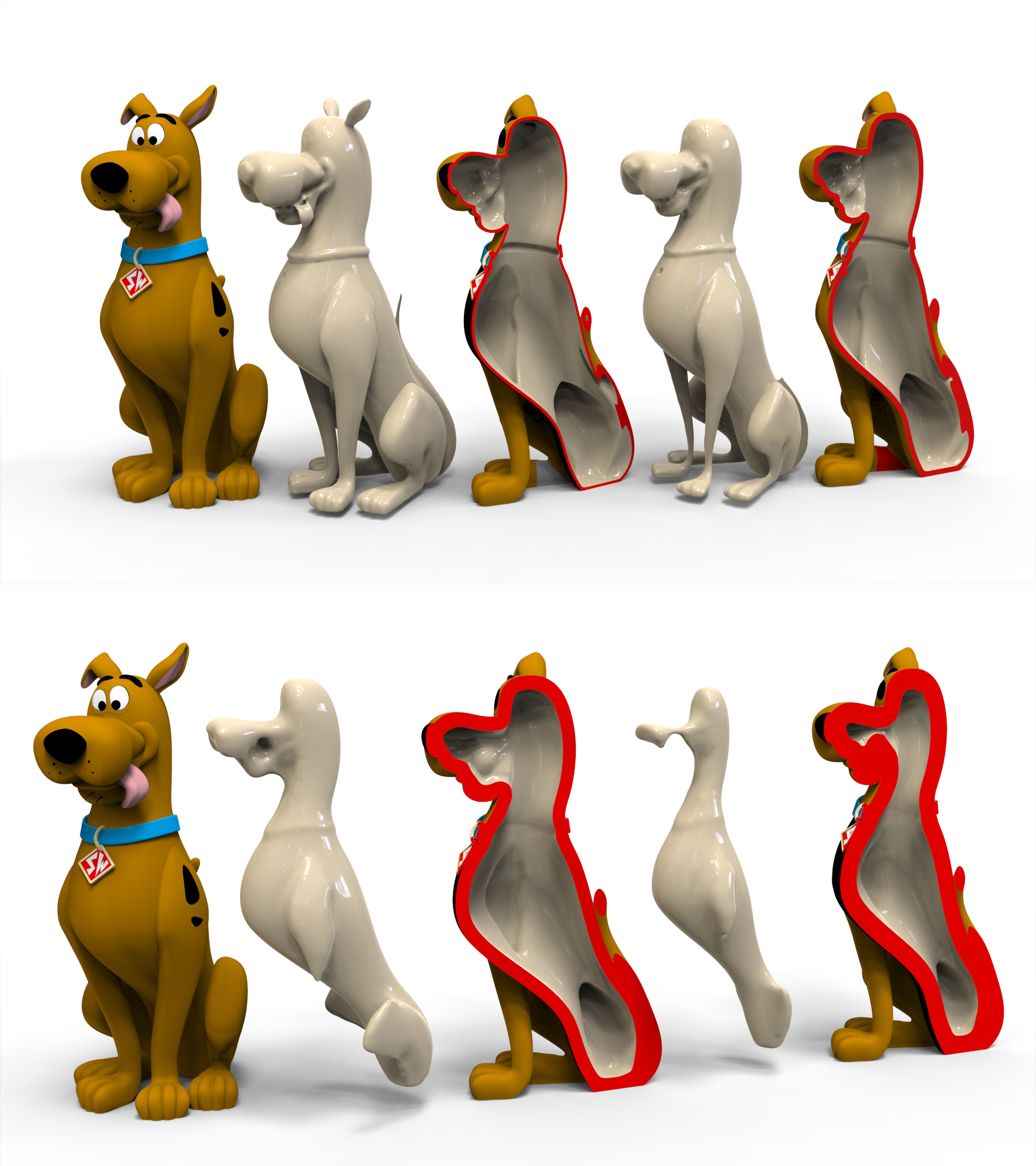

Scooby
3 / 9
Tank
4 / 9

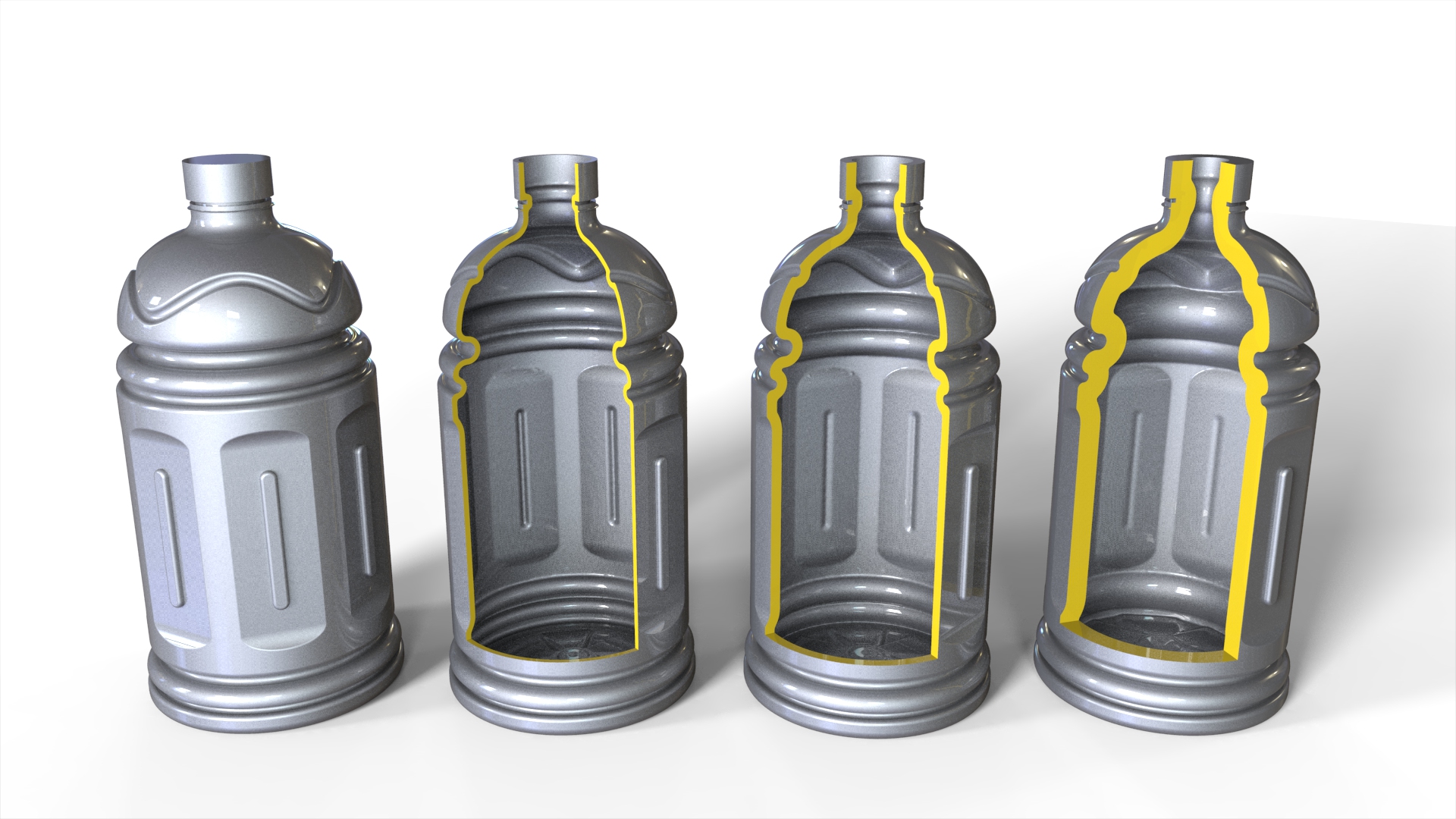

Sports Drink
5 / 9

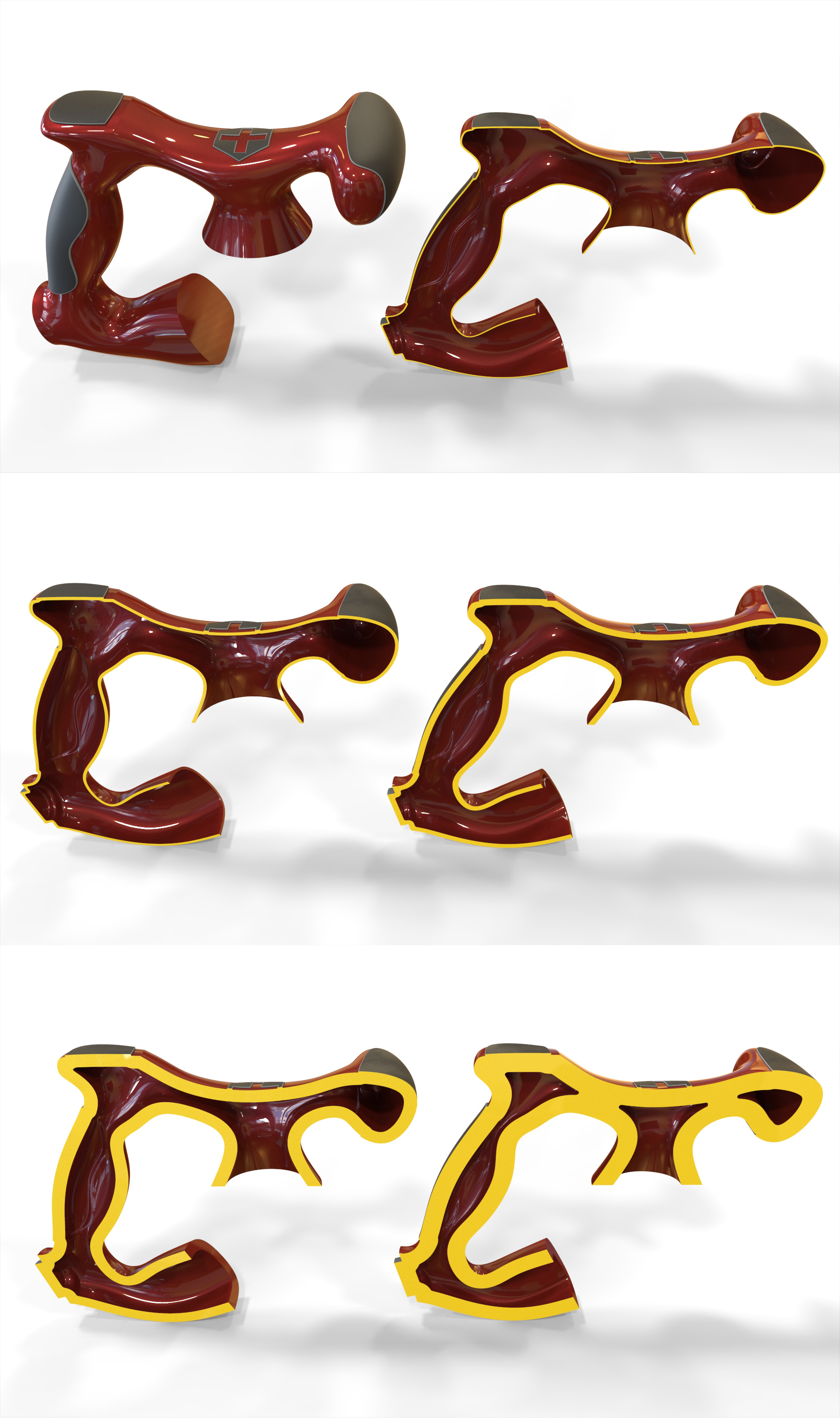

Saw
6 / 9
Bruce Lee Figure
7 / 9
Soap Bottle
8 / 9
Tall Bottle
9 / 9

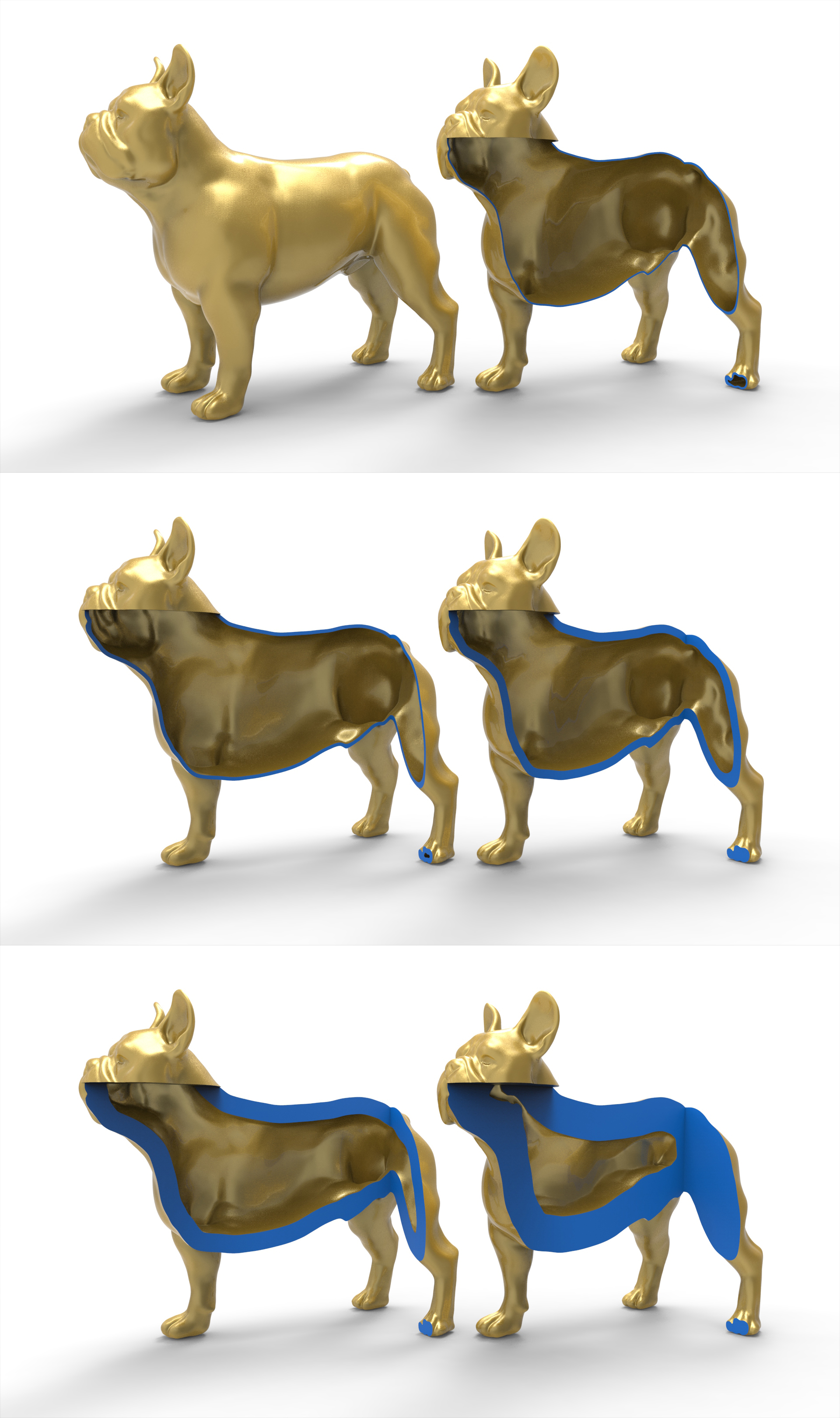

Bull Dog
